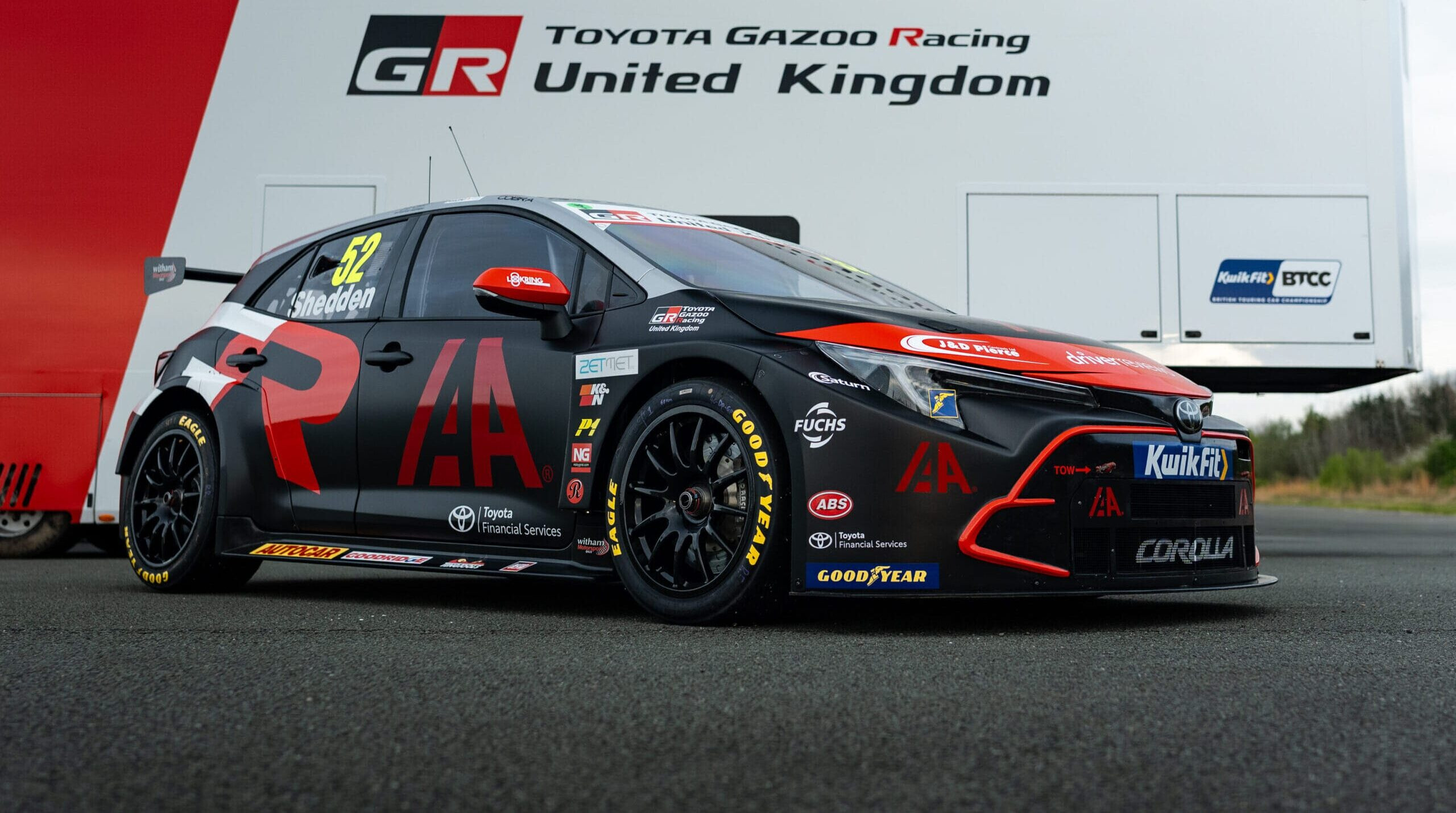

Toyota Corolla (touring car racing spec)
This topic is for NGTC or TCR race spec versions of the standard Corolla, separate from the production version and racing variants of the GR Corolla.
POLLS
Note - voting on polls does not substitute for voting on the topic. Make sure to VOTE above the first post to have your interest in this model counted.
Turbocharged 4-cylinder in line, transversally installed
Distribution: two overhead camshafts, 16 valves
Displacement: 1995 cc
Bore x stroke: 82.5x93.3 mm
Max. output: 340hp @ 6400 rpm
Max. torque 410nm @ 4400 rpm
Lubrication: wet sump
TRANSMISSION
Front-wheel-drive
Gearbox: Sadev 6-speed sequential with paddle shift
Clutch: Alcon double-disc sintered metal
Differential: mechanical limited slip differential
CHASSIS
Front suspension: Trailing arms, coil springs, gas-filled dampers, anti-roll bar
Rear suspension: Trailing arms, coil springs, gas-filled dampers, anti-roll bar
Steering: electrical power assisted rack and pinion.
BRAKES
Dual circuit hydraulic system
Front brakes: four-piston calipers, 378 mm steel ventilated discs
Rear brakes: two-piston calipers, 280 mm steel discs
DIMENSIONS
Length: 4700 mm
Width: 1950 mm
Wheelbase: 2699 mm
BOP
ECU type & Power level: C5
Ballast: 0 kg
Minimum racing weight: 1265 kg (endurance 1250 kg)
Ground clearance: 70 mm
